Find Your Solution
Choose the perfect solution for your application from our compact Erbium and Ytterbium fiber lasers, with wavelengths spanning the visible to the Mid-IR.
New Features & Improvements
Wavelengths from the mid-infrared region to 520 nm and beyond: learn more about the latest lasers for academic research and industrial applications.
Tracing its origin to worlds first commercial supplier of optical frequency-combs, Menlo Systems has been leveraging innovation in ultrastable laser technology for over 20 years. Today, we continuously strive to extend a portfolio of femtosecond fiber lasers based on our proprietary figure 9® mode locking technology – meeting scientific precision with industrial robustness.
The ELMO series of 1560 nm erbium lasers delivers up to 380 mW average output power with pulse durations down to 45 fs – industry proven by 24/7 operation in harsh environments.
For 2025 improvements, we increased the output power of the ELMO model to support even more demanding applications like amplifier seeding, THz generation or ultrafast pump-probe spectroscopy. The ELMO module is the starting point for multi-colour outputs and modules in a very compact design with simple plug & play.
The ELMO 780 XHP model is designed for demanding high power applications in 3D nano printing and two-photon microscopy. The new high-power model delivers more than 1 W of average output power at 780 nm, with pulse durations down to 100 fs. Owing to a refined dispersion pre-compensation, these pulse durations can be delivered right to your sample. The integrated AOM allows for fast light modulation. Offering all the versatility of our modular concept, the ELMO 780 High Power fits in seamlessly to our product line of industrial femtosecond fiber lasers – ready for OEM integration.
The XHP model with multicolor ports is also enabling demanding applications in ultrafast pump-probe spectroscopy. The wavelength range could be extended starting from 390 nm up to the visible mid-IR and even to THz.
The YLMO 520, based on frequency doubling of our YLMO 1040 nm Ytterbium femtosecond laser, delivers up to 1 W average output power at 520 nm, with pulse durations below 150 fs. A versatile design permits simultaneous access of the 1040 nm fundamental, at an arbitrary power splitting ratio. High peak powers, excellent stability, and consistent long-term performance make the YLMO-520 a perfect fit to applications such as multiphoton excitation, pump-probe spectroscopy, or two-photon polymerization.
Our proprietary figure 9® fiber laser design is poised to adapt to customized repetition rates, repetition rate tuning, synchronization, asynchronous optical sampling (ASOPS), or carrier envelope phase (CEP) stabilization at exceptionally low noise levels. In 2025, we not only continue to serve these requirements with complete solutions from under one roof – but strive to advance the compactness, cost-effectiveness, and user-friendliness of control electronics to a new level.
Robust. Reliable. Ready-to-use.
Whether THz generation, multiphoton approaches in microscopy and 3D nano-printing, state-of-the-art spectroscopy, seeding of amplifiers, or generation of optical frequency combs – we have your application covered with a femtosecond fiber laser portfolio that perfectly aligns to scientific as well as industrial/OEM settings.
Ready for Synchronization

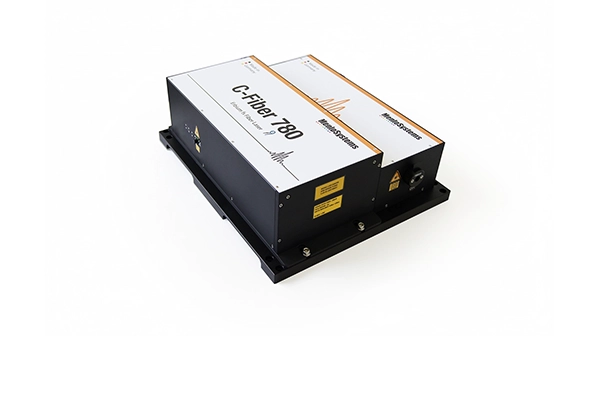

Scientific Series C-Fiber and orange
- Customized repetition rates with optional intracavity actuators for repetition rate tuning, synchronization, and carrier envelope phase (CEP) stabilization at exceptionally low intrinsic phase noise
- Complete synchronization solutions including optimized electronics to provide timing jitter on the attosecond level
- Asynchronous Optical Sampling (ASOPS) with multi-color lasers
- Optional multi-color outputs and seed ports
Ready for Integration
Industrial Series ELMO and YLMO
- Excellent cost-performance ratio and low cost of ownership through reduced complexity, use of standard telecom components, and Telcordia qualified pump diodes – all ready for 24/7 operation
- Ultra-compact designs
- Fast and easy OEM integration through modular concept and fiber-coupled interconnects
- Quickly adaptable options like dispersion pre-compensation, multiple amplifier seeding, pulse picking and fast amplitude modulation
Tracing its origin to worlds first commercial supplier of optical frequency-combs, Menlo Systems has been leveraging innovation in ultra-stable laser technology for over 20 years. As a result, today we offer a portfolio of femtosecond fiber lasers with unprecedented phase-noise performance based on our proprietary figure 9® mode locking technology1,2 meeting scientific precision and with industrial robustness.
[1] Patents EP 2637265 A1 / CN 103311780 A / US 8873601 B2
Carrier-envelope (CE) beat note measurements prove unsurpassed phase noise performance of Menlo Systems figure 9® mode locking technology3.
[3] N. Raabe et. al., Optics Lett. (2017), Vol. 42, No. 6, 1068
Core of figure 9® is an all polarization-maintaining fiber design, efficiently decoupling the laser cavity from perturbations such as vibrations and temperature variation. The technology contains no critical or life time limiting components, such as degradable optics. Whether designed to serve science or industry, our femtosecond fiber lasers share exceptional performance:
- Robust.
A single well-defined mode lock state guarantees robust self-start and mode locked operation within seconds – even in the harshest of environments. - Reliable.
Reproducible laser performance You can rely on even after thousands of on-off turns – with excellent power stability, pulse-to-pulse repeatability, and unsurpassed relative intensity noise (RIN). - Ready to use.
After installation with the turn of a key, our lasers are maintenance-free and thermally managed without any external cooling.
Output power stability of Menlo Systems ELMO Series:
Why 9 Cuts a Good Figure
Get a concise introduction to the underlying technology and the key benefits of our proprietary figure 9® mode locking technology.
Contact Our Expert
Whether you’re working on a research project, developing a new product, or looking to optimize your setup, our experts are here to support you. We provide tailored advice on system integration, laser configuration, and application-specific requirements across a wide range of fields.
