YLMO
Femtosecond Ytterbium Laser

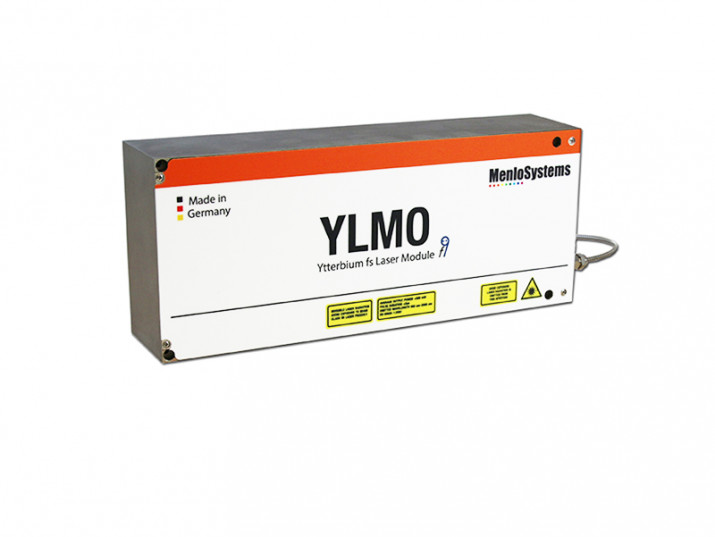

MENLO YLMO pic3 3w

Specifications

Advanced Features and Benefits

  • High Stability
  • Low Amplitude and Phase Noise
  • All-PM Solution
  • Single Mode-Lock State
  • figure 9® Technology, Laser Output in Less than 60 Seconds
  • Repetition Rate 50-100 MHz
  • Smallest Footprint, One-box laser (no external control unit)
  YLMO
YLMO HIGH POWER
Central Wavelength  1030 nm ± 5 nm 1030 nm ± 5 nm
Average Power  >5 mW >200 mW
Pulse Energy  >0.1 nJ >4 nJ
Bandwidth** >14 nm (others on request)   >14 nm (others on request)
Pulse Width (FWHM) chirped, supporting <120 fs chirped, supporting <140 fs
Repetition Rate*** 50 MHz (80 MHz or 100 MHz with VARIO) 50 MHz (80 MHz or 100 MHz with VARIO)
Output Port SC/APC fiber patch cord SC/APC fiber mating sleeve
2nd Fiber-Coupled Seed Port optional optional
Polarization linear, PM fiber linear, PM fiber

*Delivered with additional electronic unit 19”, 2HE.
**Other bandwidths on request.
***Please inquire for your specific combinations of average power, pulse duration, repetition rate, and external fiber length.

Description

Menlo Systems’ Ytterbium based femtosecond fiber laser oscillator integrates the latest developments in fiber technology and incorporates these enhancements into an easy-to-use product.

Our patented figure 9® technology delivers reliable and consistent mode-locking, which is ideally suited to ensure long-term stable operation. The PM-fiber design guarantees excellent stability and low noise, even in harsh environments with high fluctuations in temperature. As a seed source for amplifiers, the YLMO offers easy integration and maintenance-free operation, engineered for 24/7 operation.

Options

  • VARIO User-Defined Repetition Rate

    Product Code: VARIO

    Factory-set value selectable in the 50-100 MHz range

  • MULTIBRANCH Additional Seed Ports

    Product Code: MULTIBRANCH

    Seeding of multiple amplifiers with optional subsequent frequency conversion to cover multiple wavelengths

Amplitude noise

YLMO Seed Laser: < 0.5% rms (over 15h in ambient temperature)


YLMO with Amplifier: < 1% rms (over 12h in ambient temperature, YLMO seeding Menlo BlueCut)



Reproducibility

Identical and consistent laser performance

Starttest C Fiber 3w

Menlo Expert Jeannette Kemmer 2019
Dr. Jeannette Kemmer
Your direct line to our expert
j.kemmer@menlosystems.com

Data sheets

Ordering information
