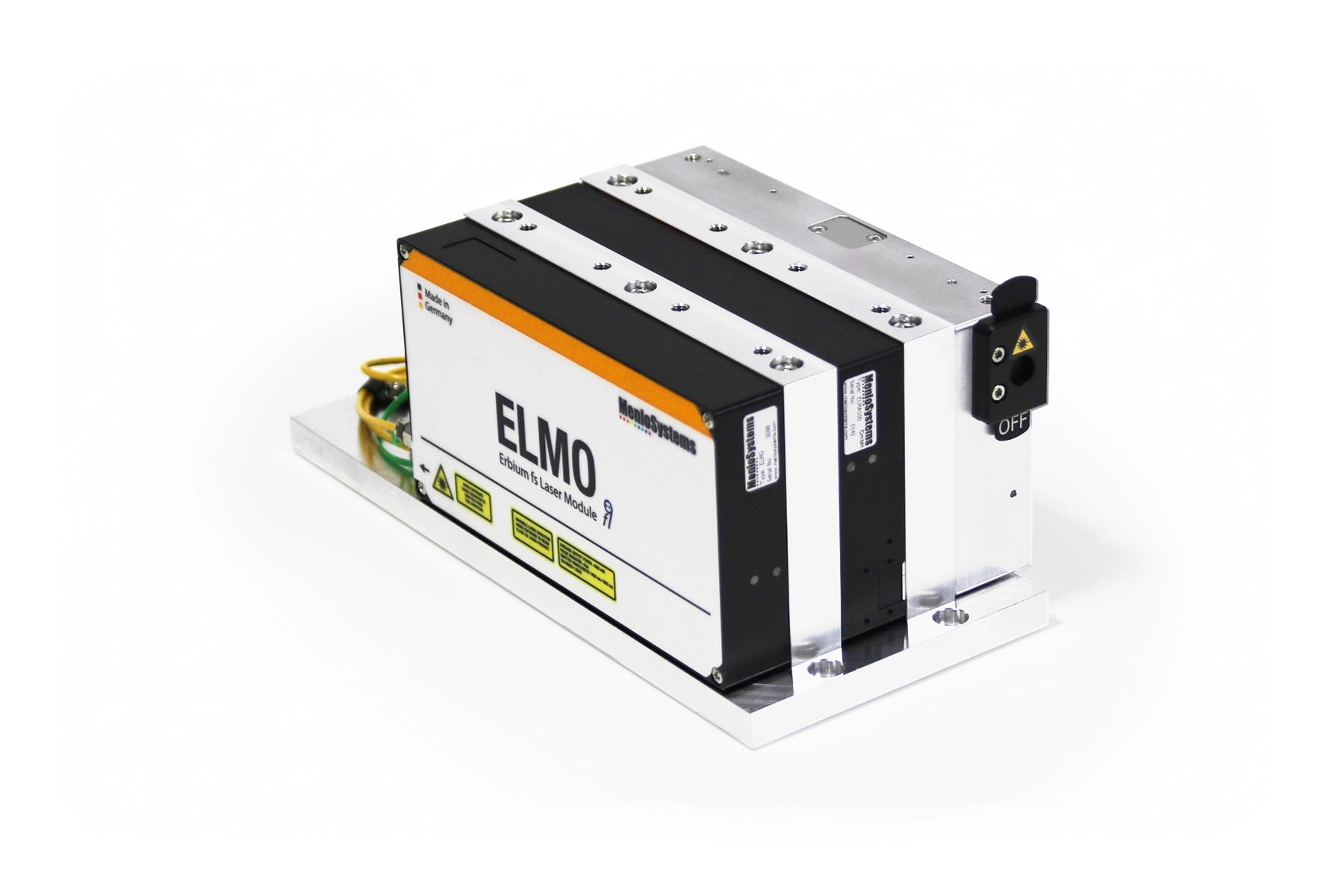

ELMO 780
Femtosecond Erbium Laser

MENLO SYSTEMS_Femtosecond_Fiberlaser_ELMO780_pic_3w

Specifications

Advanced Features and Benefits

  • High Stability
  • Low Amplitude and Phase Noise
  • All-PM Solution
  • Single Mode-Lock State
  • Menlo figure 9® Technology, Laser Output in Less than 60 Seconds
  • Repetition Rate 50-100 MHz
  • Smallest Footprint, No additional laser driver required
  ELMO 780
ELMO 780 HIGH POWER
Central Wavelength  780 nm ± 10 nm 780 nm ± 10 nm
Average Power  >75 mW (typ. 85 mW) >140 mW (typ. 165 mW)
Pulse Width <100 fs (typ. 85 fs) <100 fs (typ. 85 fs)
Output Port free space free space
Polarization linear, p-polarized** linear, p-polarized**

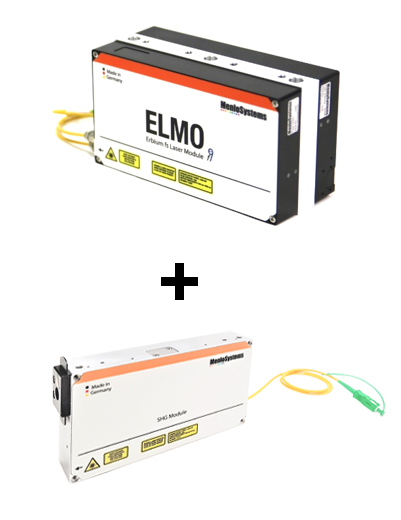

Dispersion Management pigtailed and versatile SHG module with up to 0.5 m optical fiber supply* pigtailed and versatile SHG module with up to 0.5 m optical fiber supply*
Repetition Rate* 100 MHz (50-100 MHz with VARIO) 100 MHz (50-100 MHz with VARIO)

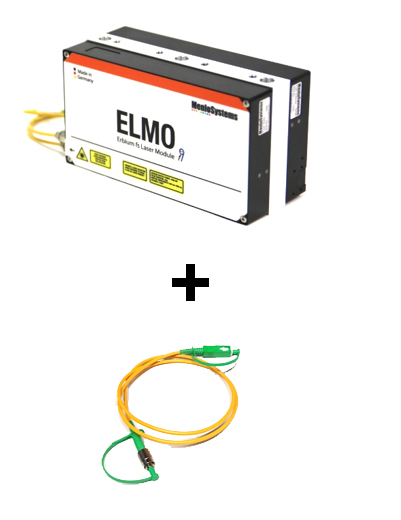

Output Port at 1560 nm***
Switchable 780 nm/1560 nm
fiber coupled, 1560 nm, >180 mW (typ. 210 mW), <70 fs (typ. 50 fs) after up to 0.8 m
detachable polarization maintaining patch cord
 fiber coupled, 1560 nm, >180 mW (typ. 210 mW), <70 fs (typ. 50 fs) after up to 0.8 m
detachable polarization maintaining patch cord
2nd Fiber-Coupled Seed Port yes yes
2nd High Power Output Port available with MULTIBRANCH available with MULTIBRANCH

*Please inquire for your specific combinations of average power, pulse duration and repetition rate.

** The versatile handheld SHG module can also be mounted in s-polarized orientation

*** Output wavelength changeable from 780 nm to 1560 nm with additional patch cord.

Description

Menlo Systems’ fiber-based femtosecond laser sources integrate the latest achievements in fiber technology into easy-to-use products. Menlo Systems’ unique figure 9® mode locking technology results in reproducible and long-term stable operation. The ELMO 780 with its modular concept and its compact frequency doubling module is optimized for OEM integration and maximum versatility. The system is maintenance free and engineered for 24/7 operation.

Options

  • VARIO User-Defined Repetition Rate

    Product Code: VARIO

    Factory-set value selectable in the 50-100 MHz range

  • MULTIBRANCH Additional Seed Ports

    Product Code: MULTIBRANCH

    Seeding of multiple amplifiers with optional subsequent frequency conversion to cover multiple wavelengths

  • DISPERSION PRECOMPENSATION Compensation

    Product Code: Dispersion precompensation

    Dispersion precompensation to compensate dispersion of microscope objective and additional optics of up to 16.000 fs²

Amplitude noise

< 0.5% rms (over 24h)

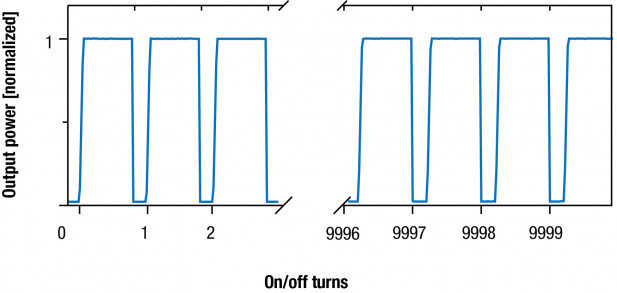

 Reproducibility

Identical and consistent laser performance

Reproducibility fs Fiber Lasers



Spektren und Autokorrelationen

Menlo Expert Andon Bano 2021
Dr. Andon Bano
Your direct line to our expert
