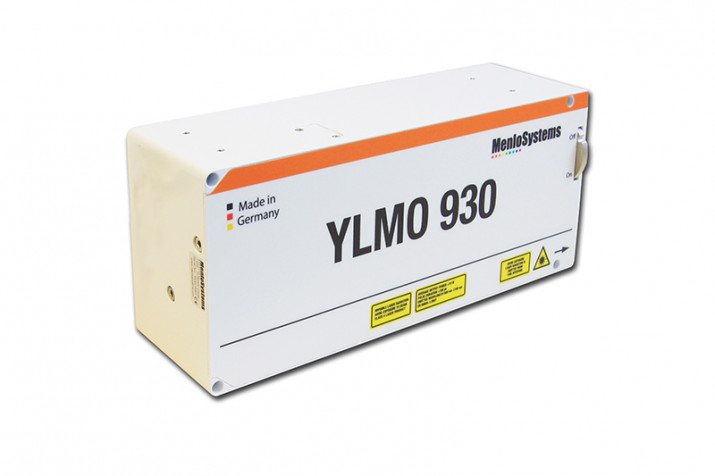

YLMO-930
Femtosecond Fiber Laser

YLMO 930 Head Marketing 2019 3w

Specifications

Advanced Features and Benefits

  • Compact: 10-50 times smaller than Ti:Sapphire lasers
  • Laser Output in less than 60 seconds after turn-on
  • Low Amplitude and Phase Noise
  • Adjustable Chirp Control (-24000 ...0 fs2)
  • Low Amplitude and Phase Noise
  • Modulation Input (enable/disable): SMA Connector
  • Radio Frequency Output for Trigger/Synchronization: SMA Connector
  • Excellent Beam Quality (TEM 00, M²<1.2) and Beam Stability
  • Air Cooled - no Chiller
  • Low Power Consumption
  • Quality “Made in Germany”
  YLMO-930
Central Wavelength  930 nm ± 10 nm
Average Power  >1 W
Pulse Energy >10 nJ
Bandwidth >10 nm
Pulse Width <140 fs, (typ. <120 fs)
Repetition Rate* 100 MHz ± 1*
Output Port freespace
2nd Synchronized Output Port (optional) 1030 nm ± 10 nm, >1,5 W, <150 fs
2nd Fiber-Coupled Seed Port (optional) 1030 nm ± 10 nm
Polarization linear, (>50:1)
Beam Diameter 2 mm ± 0.5 mm
Beam Height 56 mm**

*Other repetition rates on request, **Beam height adjustable with standard posts

Description

Menlo Systems’ femtosecond fiber laser integrates the latest developments in fiber technology and incorporates these enhancements into an easy-to-use solution.

Our patented figure 9® technology delivers reliable and consistent mode-locking, which is ideally suited to ensure long-term stable operation in demanding environments. The YLMO-930 with its PM-fiber design guarantees excellent stability and consistent long-term performance. The YLMO-930 is engineered with life science applications in mind. The pulses can be prechirped to attain their shortest width within their intended target sample. The impeccable beam quality, both spatially and temporarily, ensures the most efficient use of the deposited energy for the targeted multiphoton process.

The installation of the laser system is as easy as it gets, taking only a few minutes. For ease of operation, the laser is switched on by the push of a single button. The maintenance free operation translates to a worry-free device that enables our customers to focus their time and resources on their actual application.

Options

  • Pockels Cell 930 nm port

    Product Code: Pockels Cell

    Specifications
    Head Dimensions 265 x 110 x76 mm3
    Beam Height 42 mm
    Modulation Frequency 200 kHz
    Response Time 1 µsec
    Extinction Ratio >27 dB
    Transmission ~95%
  • MULTIBRANCH_YLMO-930 2nd additional port

    Product Code: MULTIBRANCH_YLMO-930

    Specifications
    Head Dimensions 265 x 110 x76 mm3
    Beam Height 56 mm
    Wavelength 1030 nm ± 10 nm
    Average Power >1.5 W
    Pulse Energy >15 nJ
    Pulse Width <150 fs

GFP excitation

Absorption spectra of GFP proteins plotted together with the output spectrum of the YLMO-930. The laser is ideally suited for 2-photon fluorescence imaging with GFP and its variants.


Amplitude noise

YLMO-930 Laser: < 0.5% rms (over 12 h in ambient temperature)



Reproducibility

Identical and consistent laser performance

Starttest C Fiber 3w

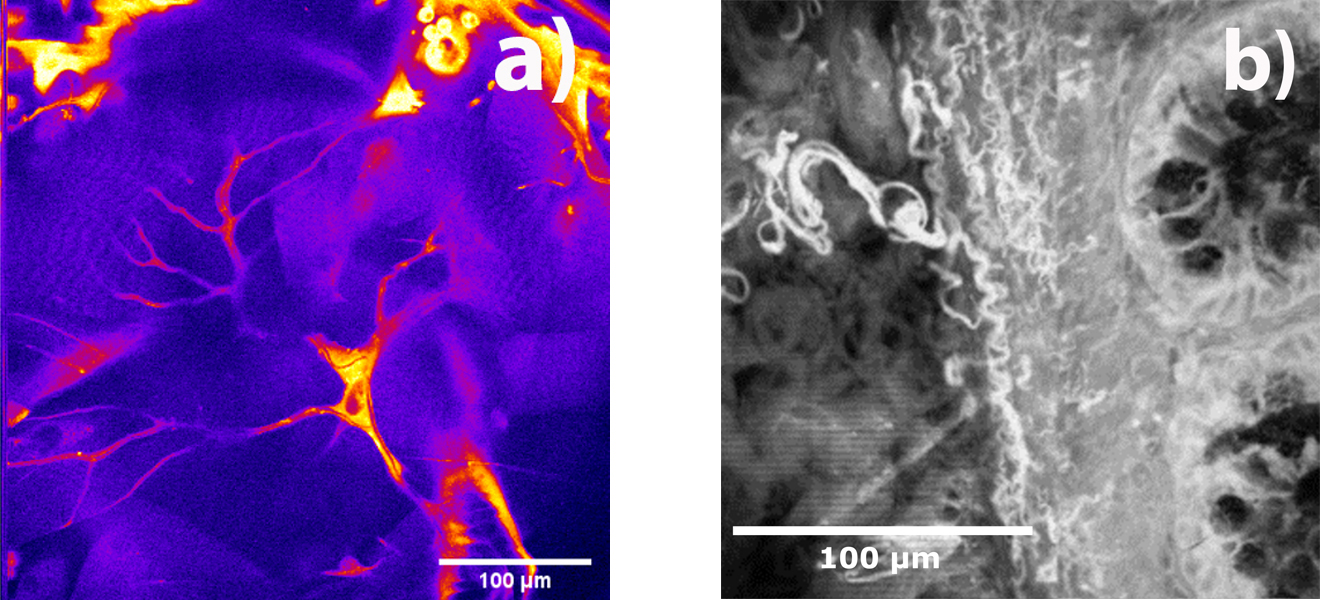

Applications
