C-Fiber
Femtosecond Erbium Laser

Menlo_Systems_Femtosecond_Fiber_Laser_C Fiber_2018 05 08_3w

Specifications

Advanced Features and Benefits

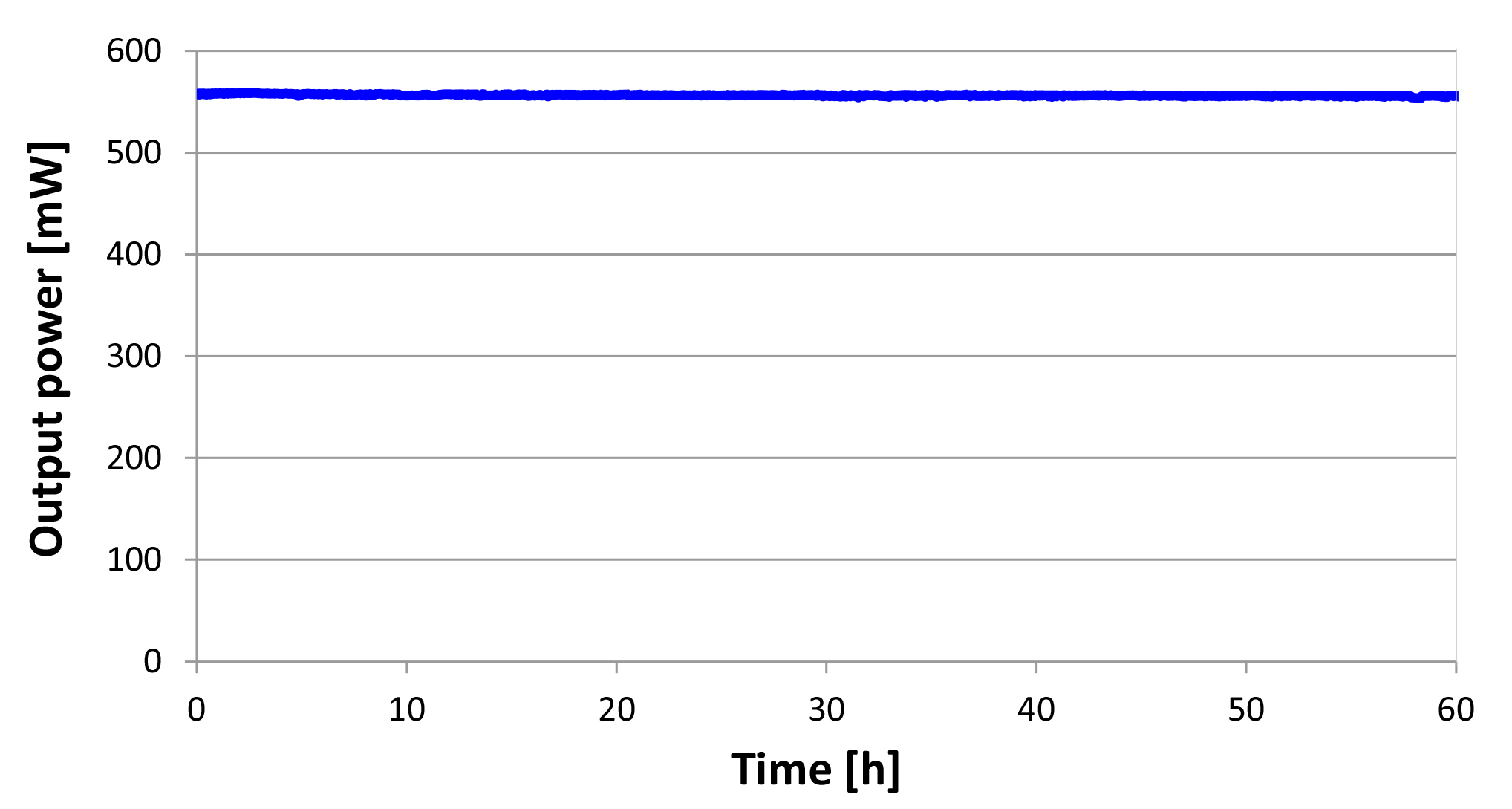

Lowest Amplitude and Phase Noise

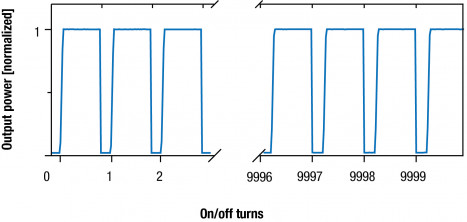

Single Mode-Lock State with all PM solution
Multicolor output ports on request with arbitrary splitting ratios of output power
Repetition Rate 50-250 MHz
Large tuning range of the repetition rate with typically 400kHz @ 100MHz (Sync Option)
Complete synchronization solution available: laser + synchronization electronics (all components from one supplier) with full automation → hands off operation
Repetition rate synchronization at all frequencies
Additional seed ports for later upgrade

	C-Fiber	C-Fiber High Power

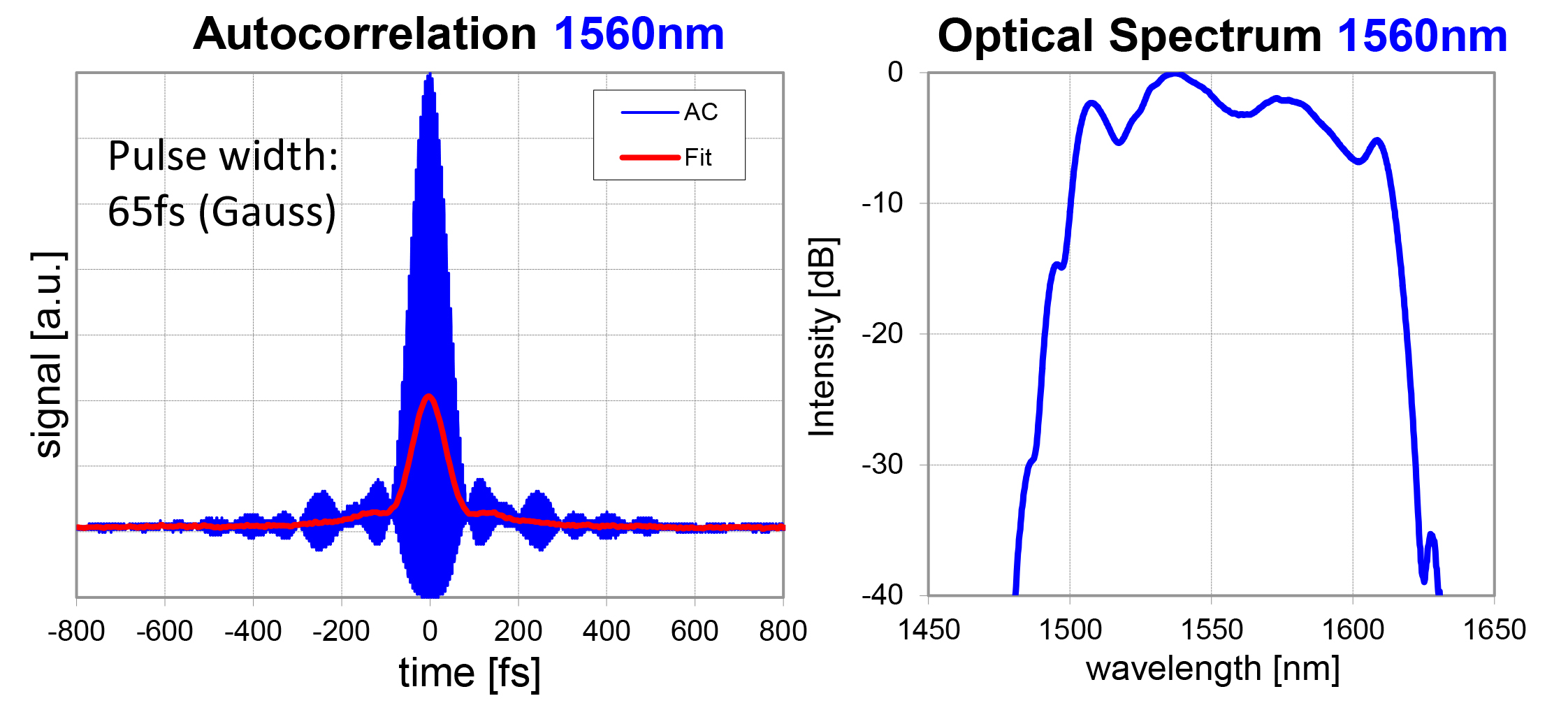

Central Wavelength	1560 nm ± 20 nm	1560 nm ± 20 nm
Average Power*	>100 mW	>500 mW
Pulse Energy*	>1.0 nJ	>5.0 nJ
Pulse Width	<90 fs	<90 fs
Repetition Rate	100 MHz (50-250 MHz with Vario)	100 MHz (50-250 MHz with Vario)
Repetition Rate Instability	<1 ppm over 20 hours at constant temperature	<1 ppm over 20 hours at constant temperature
Timing Jitter	<2 fs [rms, 10 kHz.. 1 MHz]	<2 fs [rms, 10 kHz.. 1 MHz]
Output Port	fiber-coupled (FC/APC)	free space
Polarization	linear, PM fiber	linear, s-polarized
Beam Height		102 mm

*Please inquire for your specific combinations of average power, pulse duration and repetition rate.

Description

Menlo Systems’ fiber-based femtosecond laser sources integrate the latest achievements in fiber technology into easy-to-use products. Menlo Systems’ unique figure 9^® design results in reproducible and long-term stable operation. It is based on the well-established Nonlinear Amplifying Loop Mirror (NALM) mode locking mechanism. Both oscillator and amplifier use polarization maintaining (PM) fiber components only, ensuring excellent stability and low-noise operation. The laser is maintenance free, user installed and ready to use at the press of a single button. Customize your laser with the available options to match the requirements of your application. Complete synchronization solution is available with laser and synchronization electronics. All components from one supplier with full automation guarantees hands off operation and more time for your experiments.

Options

SYNC100 Repetition Rate Synchronization

Product Code: SYNC100

Tunable cavity length by high-bandwidth piezo-controlled synchronization
RRE-SYNCRO Repetition Rate Stabilization

Product Code: RRE-SYNCRO
Feedback electronics to phase lock pulses to an external clock (see product page for more details)
All-in-one synchronization solution: laser and synchronization electronics all components from one supplier: full automation for hands off operation, integrated and tested for an immediate start. → best performance with more time for your experiments!

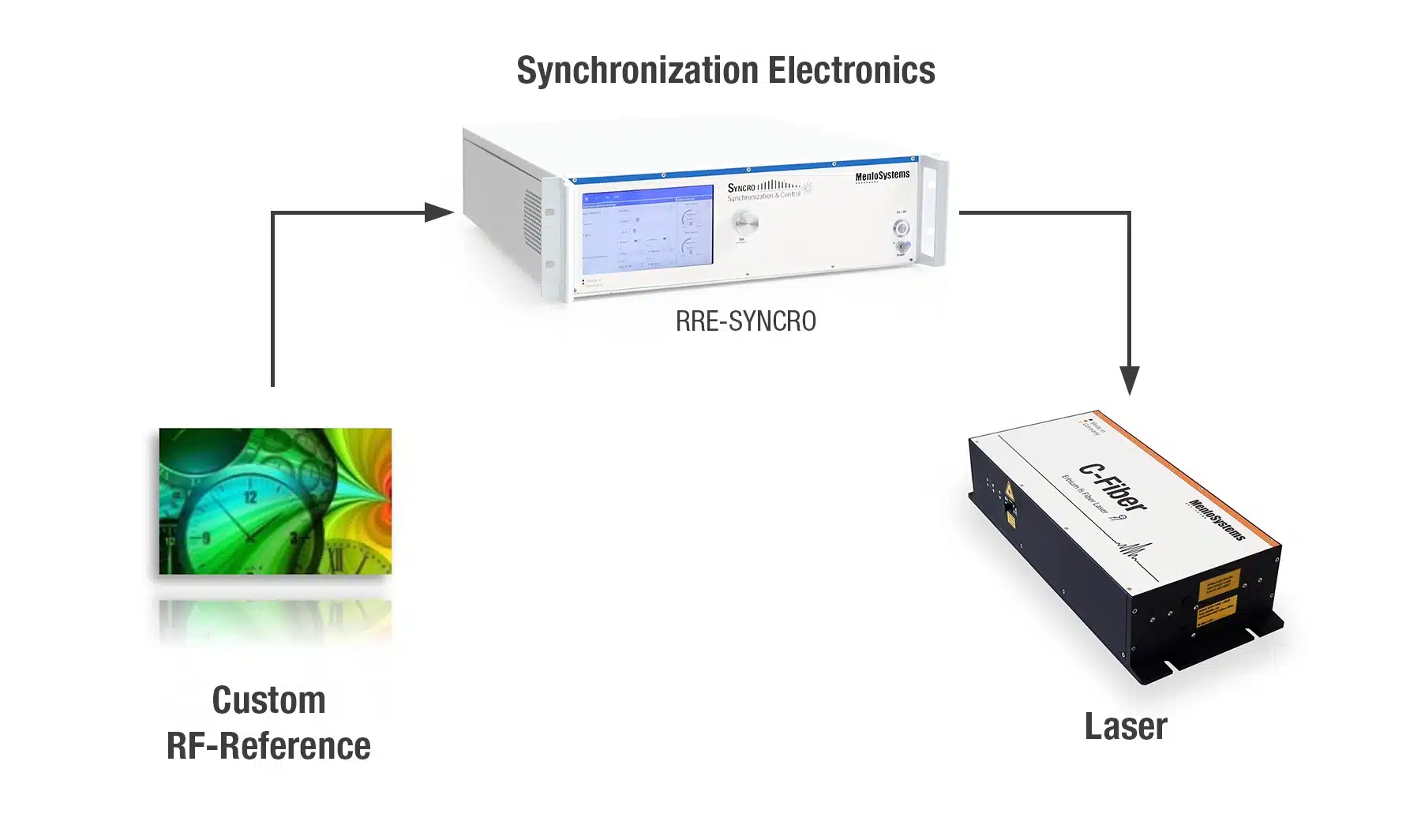

Synchronization: Laser to reference
Relative Phase Noise between stabilized laser and 10 MHz reference:
RMS Timing Jitter: <200 fs [0.1 Hz–500 kHz] or same as reference, whichever applies first
Integrated timing jitter of free running laser: <2 fs [rms, 10 kHz.. 1 MHz]

Synchronization: Laser to laser
Relative Phase Noise between two lasers in master-slave configuration
RMS Timing Jitter down to <20 fs [0.1 Hz–500 kHz] for Menlo fs lasers as master/slave with small locking bandwidth
Integrated timing jitter of free running laser: <2 fs [rms, 10 kHz.. 1 MHz]
VARIO User-Defined Repetition Rate

Product Code: VARIO

Factory-set value selectable in the 50-100 MHz range
MULTIBRANCH Additional Seed Ports

Product Code: MULTIBRANCH

Seeding of multiple amplifiers with optional subsequent frequency conversion to cover multiple wavelengths
