APD310
High Sensitivity Avalanche Photodetector

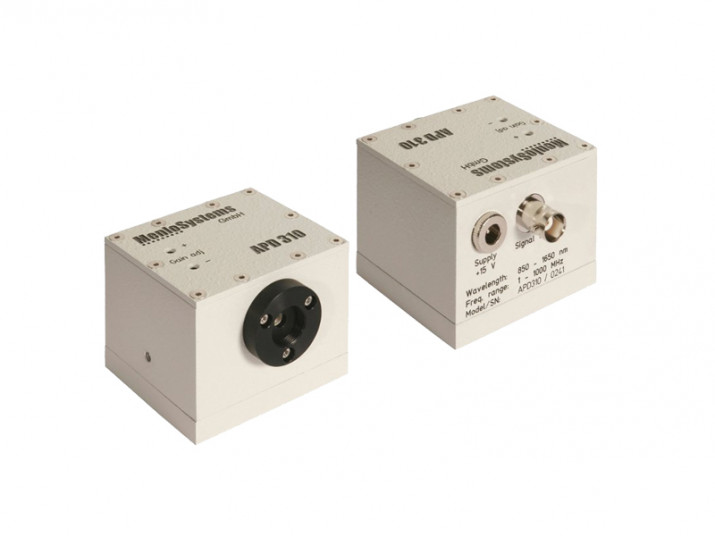

MENLO Photodetectors APD310 3w v2

Specifications

Advanced Features and Benefits

  • Wavelength Range 850-1650 nm
  • Frequency Range 1-1800 MHz
  • Avalanche Detector for Highest Sensitivity
  • Extremely Short Rise Times
  • Easy-to-use Package

Description

Originally developed for the detection of the beat note signal between cw or pulsed lasers, the APD310 is ideally suited for applications requiring highest sensitivity for low level input signals. The APD avalanche photodiode series can provide an extremely sensitive alternative to traditional PIN photodiodes. It is also fast enough for the characterization of, for example, pulsed solid-state lasers on the nanosecond time scale. It maintains high gain stability over the 10 °C to 40 °C temperature range by utilizing a temperature compensation circuit, which adjusts the ~150 V DC bias to ensure operation near the breakdown voltage.

Applications

  • Detection of beat signals between cw or pulsed lasers
  • Characterization of fast pulsed lasers
Menlo Expert Tobias Wuensch 2020
Tobias Wünsch
Your direct line to our expert
t.wuensch@menlosystems.com

Data sheets

Product literature

Ordering information

  • Product Code
  • APD310 / 2.760 €
