YLMO
Femtosecond Ytterbium Laser

YLMO 2W Laser Head 3w

Spezifikationen

Advanced Features and Benefits

  • High Stability
  • Low Amplitude and Phase Noise
  • All-PM Solution
  • Single Mode-Lock State
  • figure 9® Technology, Laser Output in Less than 60 Seconds
  • Repetition Rate 80-100 MHz
  • Compact Laser Head and Silent Operation
  • Robust Design for Harsh Environments
  YLMO
Central Wavelength  1045 nm ± 10 nm
Average Power  >4 W (@ 100 MHz)
Pulse Energy  >40 nJ
Pulse Width <80 fs
Repetition Rate factory set between 80 MHz - 100 MHz, ± 1 MHz
Output Port free space
Polarization p-pol. in free space (PER: typ. 23 dB)

Fast Amplitude Modulation

Integrated AOM for fast amplitude control

Beschreibung

Menlo Systems’ femtosecond fiber laser integrates the latest developments in fiber technology and incorporates these enhancements into an easy-to-use product.

Our patented figure 9® technology delivers reliable and consistent mode-locking, which is ideally suited to ensure long-term stable operation in demanding environments. The YLMO with its PM-fiber design guarantees excellent stability and consistent long-term performance.

The YLMO is engineered with life science and multi-photon applications in mind. The pulses can be pre-chirped to attain their shortest width within their intended target sample.

The installation of the laser system is as easy as it gets, taking only a few minutes. For ease of operation, the laser is switched on by the push of a single button. The maintenance free operation guarantees a worry-free device that enables our customers to focus their time and resources on their actual application.

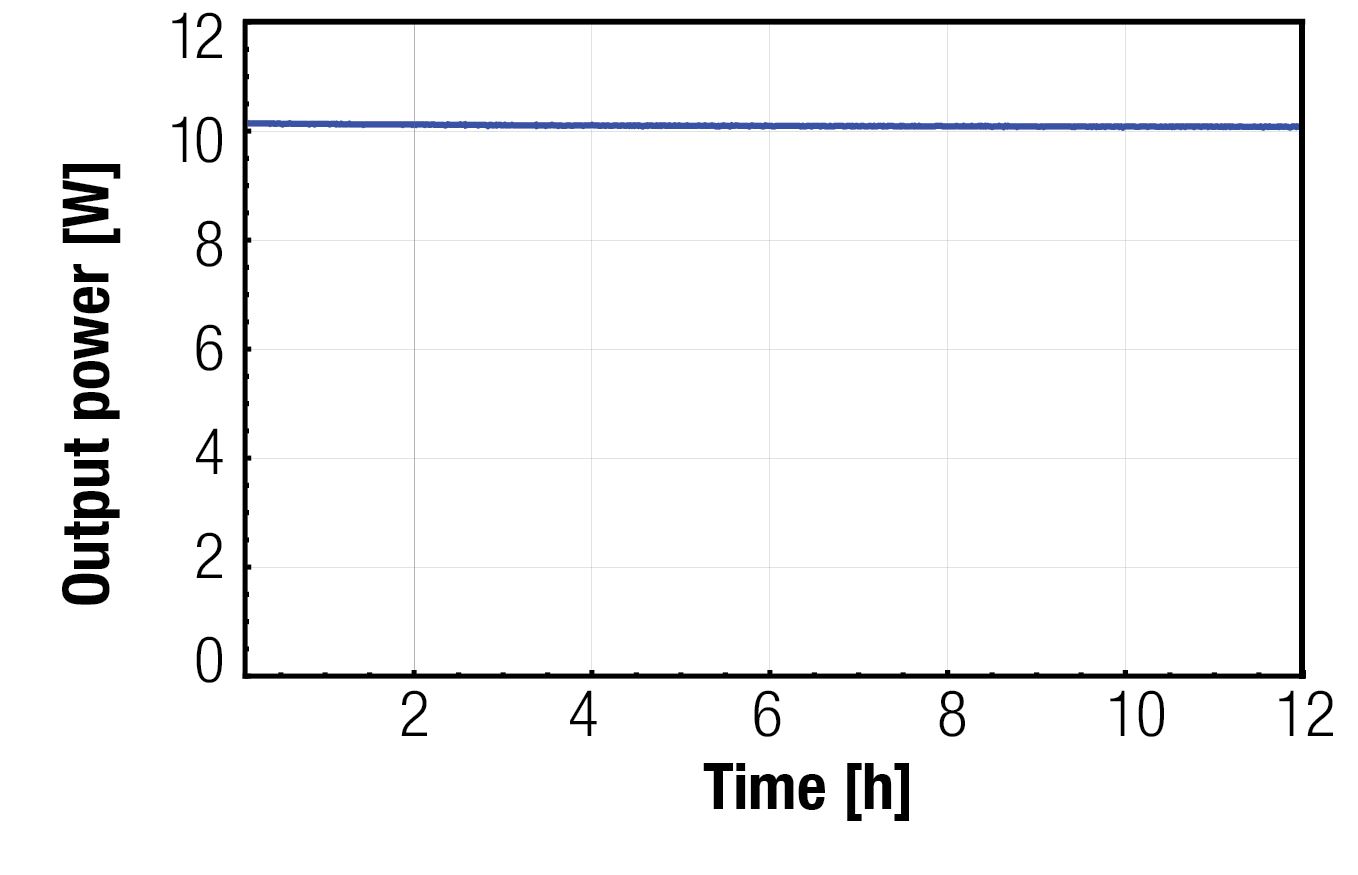

Amplitude noise

YLMO Laser: < 0.5% rms (over 15h in ambient temperature)


YLMO with Amplifier: < 1% rms (over 12h in ambient temperature, YLMO seeding Menlo BlueCut)



Reproducibility

Identical and consistent laser performance

Starttest C Fiber 3w
