TERA ASOPS
高速太赫兹时域光谱仪

MENLO SYSTEMS_Terahertz_Time_Domain_Solution_TERA_ASOPS_3w

Specifications

先进的功能和优点

  • 不依赖机械延迟线的异步光学采样(ASOPS)扫描技术
  • 扫描范围大
  • 高光谱分辨率
  • 一键式操作和界面友好操作软件
  • 支持通过网络进行远程控制和数据传输
TERA ASOPS
太赫兹技术指标
光谱范围 >3 THz
动态范围 >60 dB(典型值为80 dB)
总扫描范围 最高10 ns(相邻脉冲间距)
快速采样率 >600 Hz
驱动激光技术指标
激光输出端口 两个光纤耦合端口,1560 nm,FC / APC,PM光纤
激光系统重复频率 100 MHz
尺寸/重量
光学单元 900 x 600 x 200 mm3, 34 kg
太赫兹控制电路 19”标准机柜集成,800 x 600 x 1800 mm3, 75 kg







Description

Menlo Systems的最新型太赫兹时域光谱仪TERA ASOPS系统利用异步光学采样(ASOPS)技

术,无需机械延迟线便可实现高速数据采集。两束激光脉冲之间的扫描范围可

达10ns,支持以前所未有的超高采样速率扫描太赫兹谱线。该系统中包括的两台超快激

光器被相位锁定在一起,通过调节两者重复频率差,可用来快速产生和探测太赫兹。

TERA ASOPS 是一款功能齐全、一键启动的太赫兹时域光谱仪系统,结合ASOPS技

术与最新的光纤耦合太赫兹天线模块,可在实际应用中实现最大的灵活性。该系统包含

两套基于Menlo Systems独有的9®锁模技术的飞秒光纤激光光源、 ASOPS 同步电子

锁相模块、光纤耦合太赫兹天线、太赫兹光学元件、16位高速数据采集平台和界面

友好的客户软件。

为了可以使ASOPS被无缝集成到第三方系统中,系统软件支持远程控制光谱

仪和配备了通过网络高速数据传输功能。此外,模块化的系统平台还支持用户同时具

备额外的中心波长分别为1560nm和780nm的飞秒激光输出端口。

Options

  • THz Purge Box Extension Unit

    Product Code: THz Purge Box

    Menlo Purge box option 3w

    Compact purge box for our THz mirror systems for improved, water line free Terahertz spectroscopy.

  • MULTIBRANCH Additional Seed Ports

    Product Code: MULTIBRANCH

    Seeding of multiple amplifiers with optional subsequent frequency conversion to cover multiple wavelengths

  • TERA Image Extension Unit

    Product Code: TERA Image


    For THz imaging applications our fully automated extension TERA Image can be integrated.



  • Plug-in Terahertz Reflection Head Add-on for flexible THz measurement geometry

    Product Code: Reflection Head

    MENLO THz Reflection Head

    Plug-in THz reflection head with integrated parabolic mirror THz optics. Compatible with Menlo Systems' fiber-coupled THz antennas TERA15-TX-FC (Emitter) and TERA15-RX-FC (Receiver).

    Download PDF: Infosheet THz Reflection Head

  • Reflection Guide Add-on for flexible THz measurement geometry

    Product Code: Reflection Guide


    THz path pivot platform for quick and flexible manual adjustment of the reflection angle, ranging from a minimal reflection angle of 38° to normal up to a stretched configuration for measurements in transmission geometry. A scale for measurement angle indication is included. The platform assures angle adjustment of the sample holder.

  • ImageLab: Extended Edition THz Image Analysis

    Product Code: ImageLab


    Hyperspectral Image Processing Software for THz Imaging Data

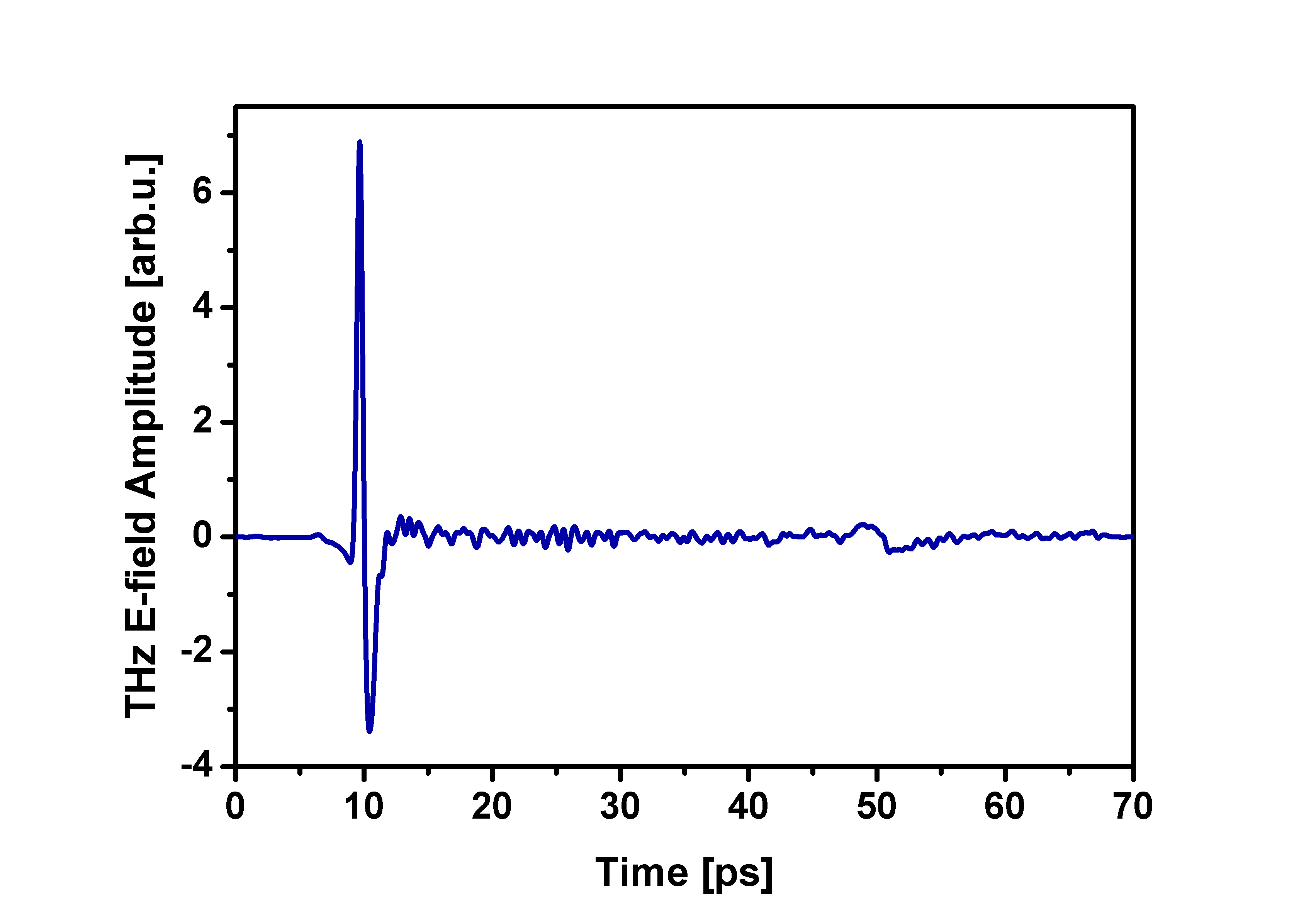

Measured THz pulse:

MENLO SYSTEMS_Terahertz Time Domain Solution_TERA_ASOPS_Timedomain_Data.JPG

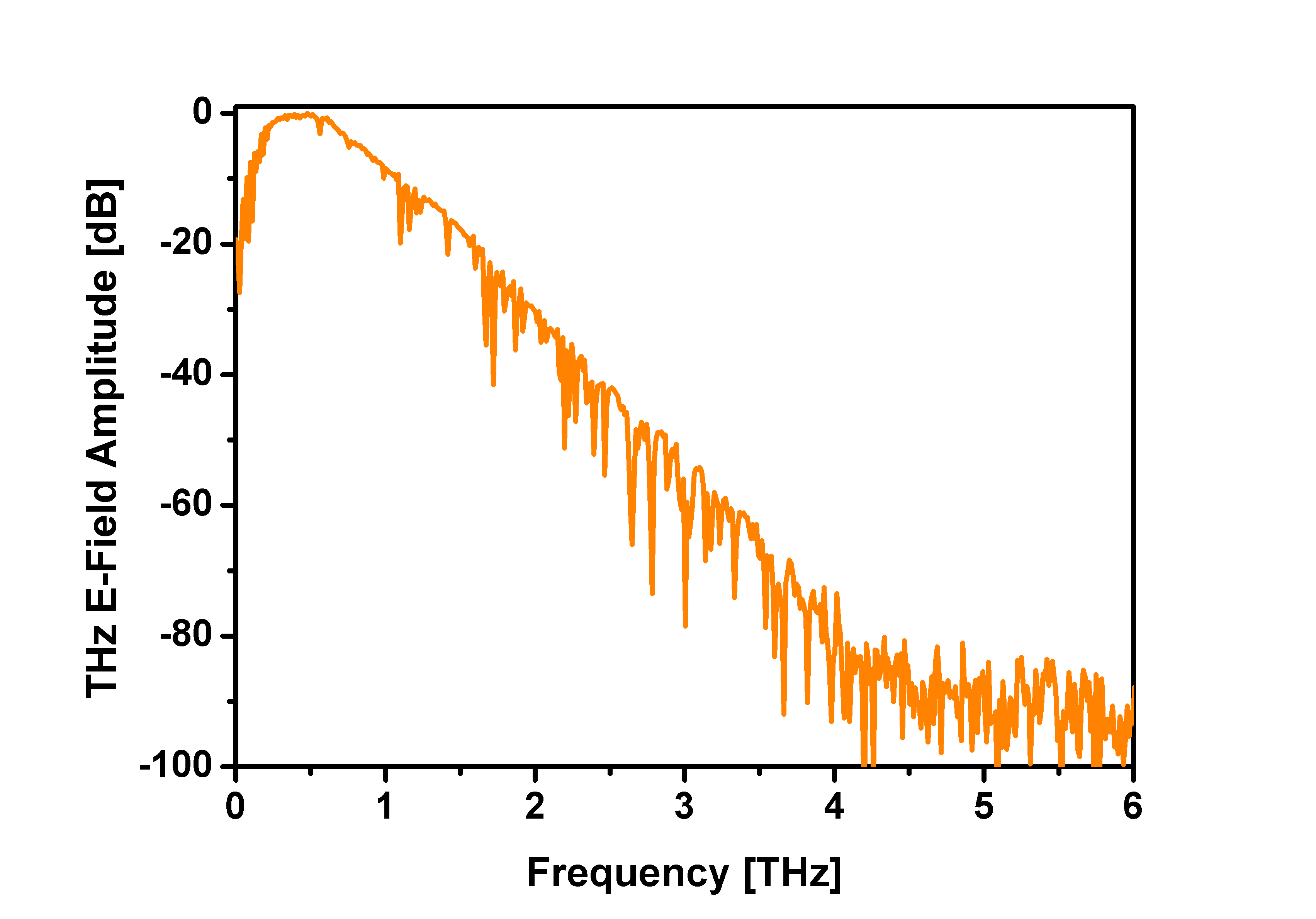

Calculated THz spectrum:



 MENLO SYSTEMS_Terahertz Time Domain Solution_TERA_ASOPS_FFT_Data.JPG
