ORS-ULN
Ultra-low noise optical reference system with unmatched frequency stability at the 10−17 level.
Superlative Performance
Design based on ultra-high-finesse silicon cavity for unmatched fractional frequency stability.
All-included Commercial System
All-in-one solution including the optical setup, electronics and fiber rack, and cooling system.
Fiber-coupled Design
Ultra-narrow linewidth light delivered ex-fiber via an FC/APC connector.
Transportable System
The robust transportation lock mechanism ensures portability without realignment.
Specifications
ORS-ULN | ||||
Central Wavelength | 1542 nm | |||
Stability | < 9.6 × 10−17 (1) The stability performance is subject to further improvements (Best effort, MADEV at 1 s: < 5 × 10−17) | |||
Linewidth | < 40 mHz (2) | |||
Absolute Linear Drift Rate | < 10 mHz/s (3) | |||
Output Power | > 5 mW (FC/APC connector) | |||
Dimensions & Mass | Optical part: | 50 × 60 × 100 cm (L × W × H) | 120 kg | |

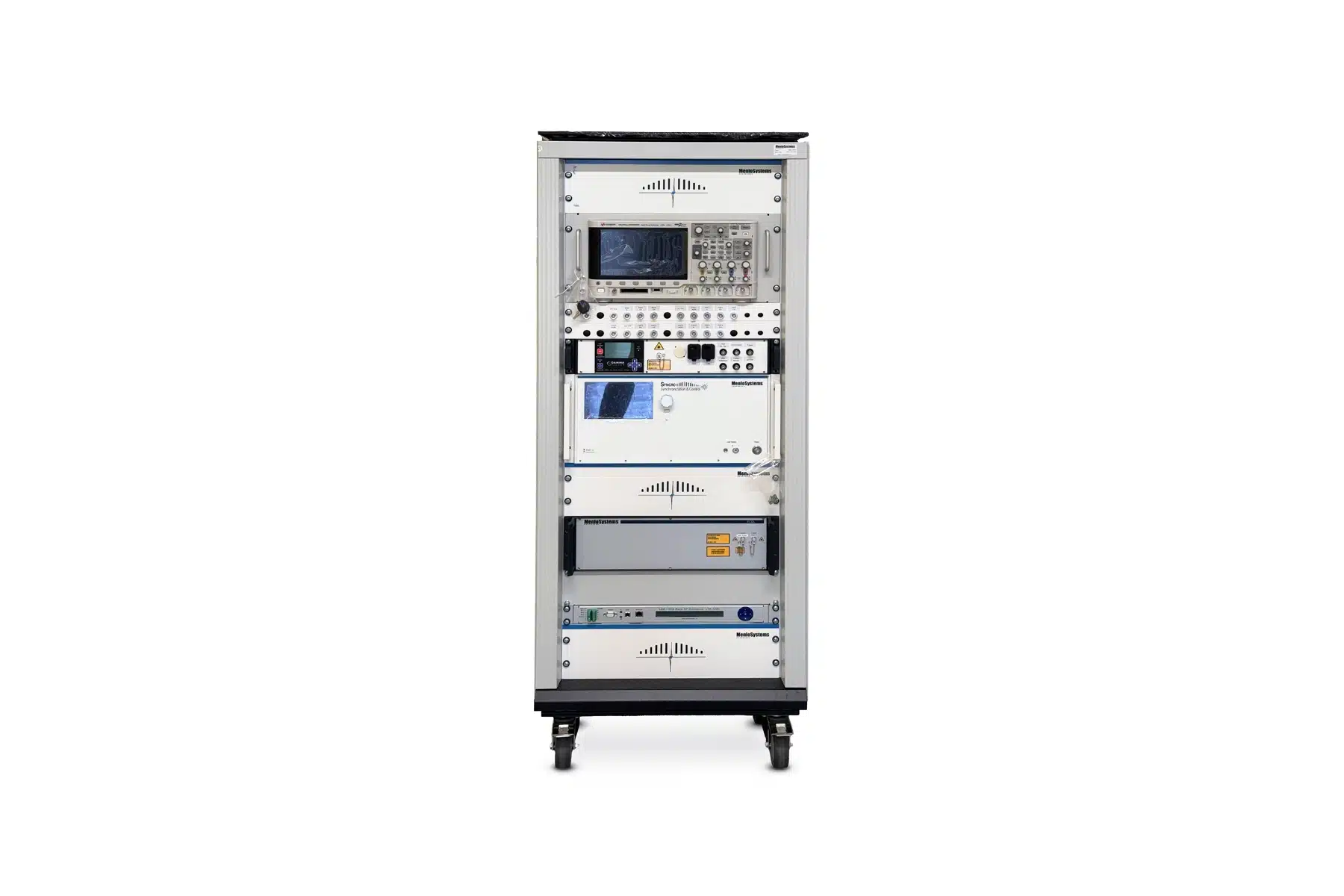

Electronics and fiber rack: | 60 × 80 × 150 cm (L × W × H) | 250 kg | ||
Cooling system: | 28 × 45 × 37 cm (L × W × H) | 32 kg | ||
- (1) Measured at Tlab = 21 ± 0.3 °C
- (2) Linewidth after locking, measurement time t > 150 s
- (3) Measured at Tcavity = 123 K
Operational Requirements
Operating Voltage | 110 / 115 / 230 VAC at 50 Hz – 60 Hz | |||
Operating Temperature | Tlab = 22 ± 5 °C The lab temperature must be stabilized within ± 0.5°C | |||
Power Consumption | < 700 W | |||
Our Expert
Ordering Information
Product Code:
ORS-ULN
