BlueCut
Femtosecond Fiber Laser

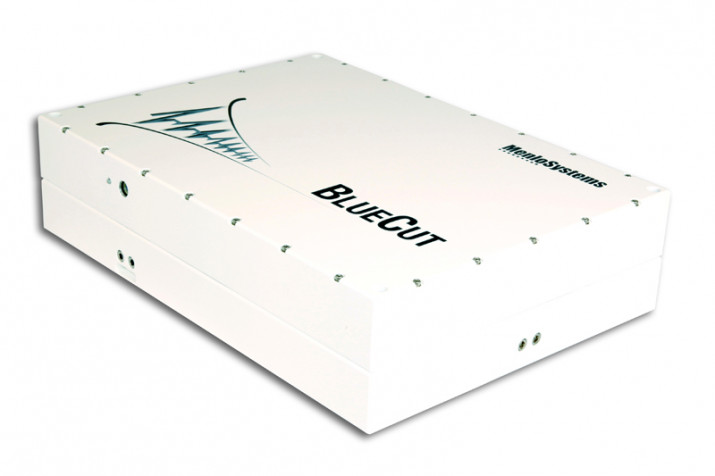

MENLO SYSTEMS_Microjoule Laser_BlueCut_pic_01_2015_3w

Specifications

Advanced Features and Benefits

  • Single shot up to 10 MHz
  • Programmable burst mode
  • >10 uJ up to 1 MHz
  • Modular and compact design for OEM integration
  • Active air cooled
  • High beam quality
  • Optional: Fiber delivery of pulses
  BlueCut
BlueCut 515
Central Wavelength 1030 nm 515 nm**
Average Power  >10 W* >3.5 W*
Pulse Energy  >10 µJ* >3.5 µJ*
Pulse Width <400 fs <400 fs
Selectable Repetition Rate single pulse up to 10 MHz single pulse up to 10 MHz
Output Port free space  free space
Beam Quality  TEM00 M^2 <1.25, typ. < 1.20 TEM00 M^2 <1.25, typ. < 1.20
Warm-up time <30 min <30 min
Electrical Supply 100-240 VAC / 50-60 Hz 100-240 VAC / 50-60 Hz
Power consumption <500 W <500 W
Long term power stability <1% rms (over 12 h, for constant ambient temperature) <1% rms (over 12 h, for constant ambient temperature)

*Whatever applies first for a given repetition rate. **Secondary output q 1030 nm, power ratio adjustable.

Examples for Average Power/Pulse Energy Combinations

Repetition rate Average power Pulse energy
250 kHz 2.5 W 10 µJ
1 MHz 10 W 10 µJ
10 MHz 10 W 1.0 µJ

Description

The BlueCut is an industrial-grade micro-Joule fiber laser system. Based on all-fiber integrated technology, this is an inherently robust and stable system, which comes in a sealed package designed for OEM integration.

The BlueCut includes oscillator and amplifier with pulse picking unit and a compressor for short high energy pulses, and is ready to use for cutting edge microprocessing applications. Due to a robust and compact design, the solution is ideally suitable for implementation into an existing setup or production line even in rough environments.
