Red-Fiber
Femtosecond Thulium Laser

Specifications
Advanced Features and Benefits
- >100 mW, >10 nm Bandwidth, 10 MHz Repetition Rate
- Fiber Based Linearly Polarized Output
- High Stability
- Turnkey Operation
- All Polarization Maintaining
- Modular Internal Design
- figure 9® Technology, Laser Output in Less than 60 Seconds
- Air Cooling
Central Wavelength | 2.05 µm (custom wavelength on request) |
Average Power | >1 mW (oscillator), >100 mW (amplifier) |
Repetition rate | 10 MHz |
Bandwidth (3dB) | >10 nm (20 nm typ.) |
Pulse duration | compressable to <500 fs |
Output Port | fiber-coupled, SC/APC |
Monitor Ports (optical, RF) | optional |
Polarization | linear, PM fiber |
Description

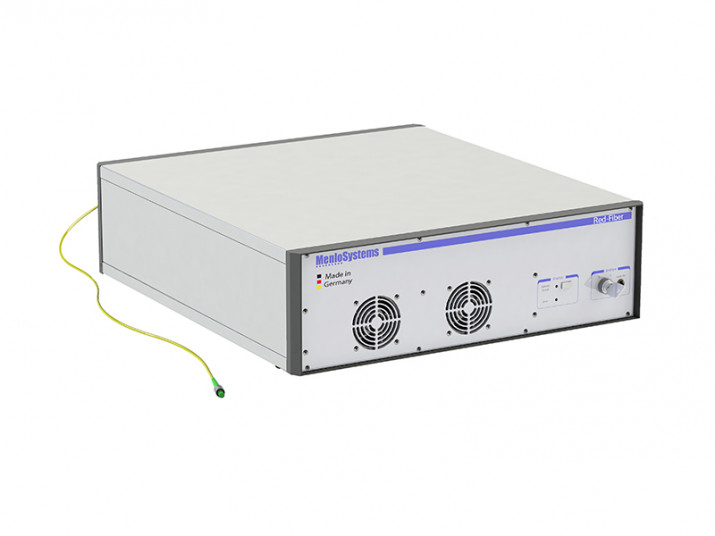

The Red-Fiber is a front end laser at 2.05 μm central wavelength and MHz repetition rate. The compact laser is based on our all polarization maintaining figure 9® mode locking technology. Intracavity dispersion compensation allows for spectral bandwidths supporting <500 fs pulse duration. The Red-Fiber is designed for reliable and long term stable operation in both scientific as well as industrial applications fields. An additional preamplifier module can be integrated to boost the output pulse energy to >10 nJ (>100 mW). The compact rack mount housing with integrated full remote control over RS232 or USB interface allows easy integration into subsequent high power laser systems.
Application Notes
- SCIENTIFIC PUBLICATION: All polarization‑maintaining fiber laser architecture for robust femtosecond pulse generation
- SCIENTIFIC PUBLICATION: Novel robust 2-µm all-PM thulium/holmium based femtosecond fiber laser oscillator
- SCIENTIFIC PUBLICATION: Compact polarization-maintaining 2.05-µm fiber laser at 1-MHz and 1-MW peak power
- SCIENTIFIC PUBLICATION: Broadband mid-infrared pulses from potassium titanyl arsetate/zinc germanium phosphate optical paramtric amplifier pumped by Tm, Ho-fiber-seeded Ho:YAG chirped-pulse amplifier
- SCIENTIFIC PUBLICATION: All-PM coherent 2.05 µm thulium/holmium fiber frequency comb source at 100 MHz with up to 0.5 W average power and pulse duration down to 135 fs
- SCIENTIFIC PUBLICATION: Fiber chirped pulse amplifier at 2.08 µm emitting 383-fs pulses at 10 nJ and 7 MHz
-
