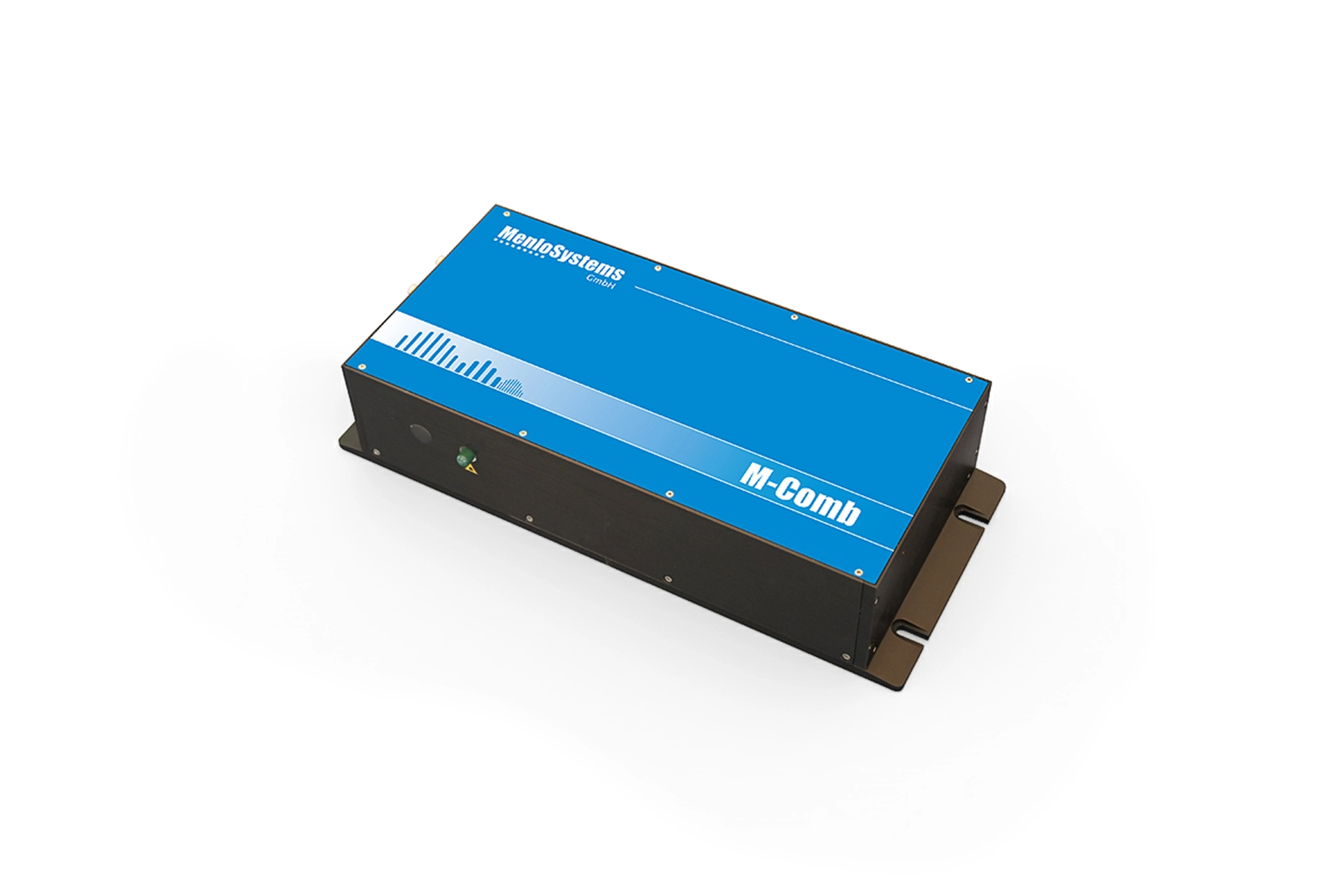

M-Comb
Versatile core of frequency comb systems, offering large comb mode spacing and high optical power per mode.
Ultrahigh Stability
Engineered design for maximum frequency and phase stability
Lowest Phase Noise
Optimized system ensures ultralow phase noise performance
Turn-key Operation
Self-starting mode-locking with microcontroller for 24/7 use
Thermal Stabilization
Temperature-stabilized system for consistent performance
Tunable Repetition Rate
250 MHz with 2 MHz range, coarse stepper motor and piezo fine lock
Adjustable CEO Frequency
Tunable within 250 MHz FSR, stabilized via pump power modulation
Specifications
M-Comb | orange-Comb | |
Central Wavelength | 1560 nm ± 20 nm | 1040 nm ± 10 nm |
Average Power | > 60 mW | > 5 mW |
Spectral Width (FWHM) | > 25 nm | > 15 nm |
Repetition Rate | 250 MHz | 250 MHz |
Repetition Rate Tuning | > 4 MHz | > 2 MHz |
CEO Frequency Tuning | > 250 MHz | > 250 MHz |
Repetition Rate Instability | < 1 ppm over 90 hours at constant temperature | < 1 ppm over 90 hours at constant temperature |
Timing Jitter | < 2 fs [rms, 10 kHz.. 10 MHz] | < 2 fs [rms, 10 kHz.. 10 MHz] |
Output Ports | 5× fiber-coupled (LC/APC) | 1× fiber-coupled (FC/APC) with > 5 mW |
1× fiber-coupled (LC/APC) for upgrade with Menlo M-Phase module | 1× fiber-coupled (E2000) for upgrade with Menlo M-Phase module | |
Polarization | linear, PM fiber | linear, PM fiber |
Data
Contact Our Expert
Ordering Information
Product Code:
M-Comb
orange-Comb
