TERA K15
All fiber-coupled Terahertz Spectrometer

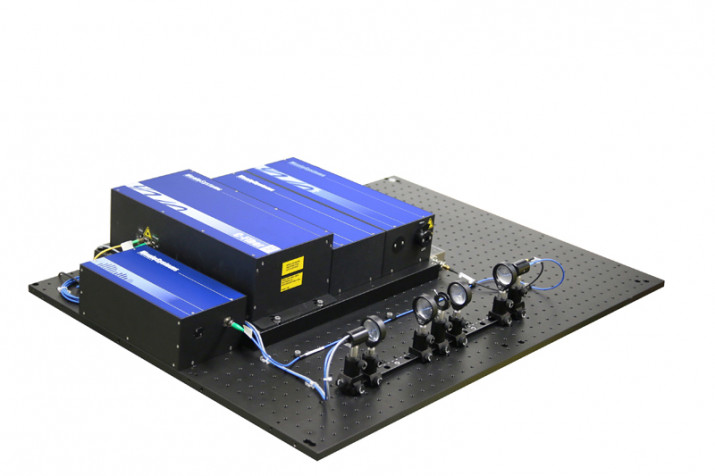

MENLO SYSTEMS-Terahertz Time Domain Solution TERA K15-3w.jpg

Specifications

Advanced Features and Benefits

  • NEW: >5 THz bandwidth, >90 dB dynamic range
  • Large >850 ps scanning range
  • Remote control and data transfer over network
  • Fast data acquisition platform without lock-in amplifier
TERA K15
Antenna model TERA15-FC*
Spectral range >5 THz (typically 5.5 THz), for higher bandwidth ask for metal mirror option
Dynamic range >90 dB (typically 95 dB)
Total scan range >850 ps, flexible setting of scanning range and speed
THz frequency resolution <1.2 GHz
Laser specifications
Wavelength 1560 nm
Total average output power >60 mW
Repetition rate 100 MHz
Output port configuration 2 x fiber coupled FC/APC ports, PM fiber
Pulse duration <90 fs, after 2.5 m patch cord
Dimensions / weight
Optical unit 540 x 450 x 200 mm / 27 kg
THz control electronics 448 x 132 x 315 mm / 8 kg

*see product data sheet for detailed specifications

Description

Our terahertz spectrometer TERA K15 provides a complete solution for fast broadband time-domain THz spectroscopy, and is known for its robustness and versatility of applications. The fiber coupled configuration is designed for operation with laser pulses at around 1.5 µm and ensures high performance and flexibility in transmission and reflection geometry. The fiber coupled THz path can be positioned outside the spectrometer housing. The system software features remote control for seamless integration into existing experiments. The TERA K15 includes our latest figure 9® femtosecond laser source, the fiber coupled optical light path with delay line, THz wave path with THz emitter, THz detector and THz optics, THz electronics, and PC with data aquisition and evaluation software for FFT spectrum, n and α extraction. For THz imaging applications our automated extension unit TERA Image can be integrated.

Options

  • TERA Image Extension Unit

    Product Code: TERA Image


    For THz imaging applications our fully automated extension TERA Image can be integrated.

    DownloadTERA Image information.

  • Reflection Guide Add-on for flexible THz measurement geometry

    Product Code: Reflection Guide


    THz path pivot platform for quick and flexible manual adjustment of the reflection angle, ranging from a minimal reflection angle of 38° to normal up to a stretched configuration for measurements in transmission geometry. A scale for measurement angle indication is included. The platform assures automatic angle adjustment of the sample holder.

  • ImageLab: Extended Edition THz Image Analysis

    Product Code: ImageLab


    Hyperspectral Image Processing Software for THz Imaging Data



TERA K15 TDS-System 1: Electrical field as a function of time:




Corresponding spectrum of emitted THz radiation:
