ELMO
Femtosecond Erbium Laser

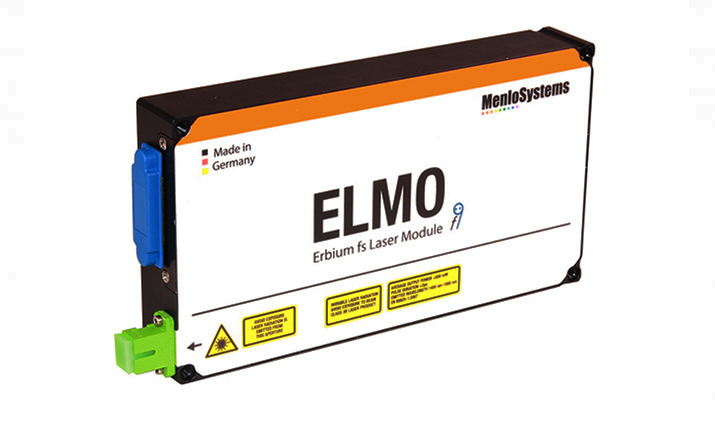

MENLO SYSTEMS Femtosecond Fiber Laser_ELMO_3w

Specifications

Advanced Features and Benefits

    • High Stability
    • Low Amplitude and Phase Noise
    • All-PM Solution
    • Single Mode-Lock State
    • Menlo figure 9® Technology, Laser Output in Less than 60 Seconds
    • Repetition Rate 50-100 MHz
    • Smallest Footprint, No additional laser driver required
    • Pulse Width down to 45 fs
  ELMO
ELMO HIGH POWER
ELMO HIGH POWER-FS
Central Wavelength  1560 nm ± 30 nm 1560 nm ± 30 nm 1560 nm ± 30 nm
Average Power >10 mW >180 mW  >330 mW
Pulse Width <150 fs (typ. 100 fs) <60 fs (typ. 45 fs)  <90 fs (typ. 70 fs)
Output Port fiber-coupled fiber-coupled  free space
Polarization linear, PM fiber linear, PM fiber
Dispersion Management* dispersion can be factory set to achieve short pulses after 0.5-30m of external fiber dispersion can be factory set to achieve short pulses after 0.5-30m of external fiber  external patch cord length of 0.5m to external compressor module**
Repetition Rate* 100 MHz
(50-100 MHz with Vario)*
100 MHz
(50-100 MHz with Vario)*
 100 MHz
(50-100 MHz with Vario)*
2nd Fiber-Coupled Seed Port   yes  yes
2nd High Power Output Port available with MULTIBRANCH available with MULTIBRANCH  available with MULTIBRANCH

*Please inquire for your specific combinations of average power, pulse duration, repetition rate, and external fiber length.

**Free space version with additional compressor module, versatile handheld compressor : module can also be mounted in s-polarized orientation. Standard external patch cord length 0.5m

Description

Menlo Systems’ fiber-based femtosecond laser sources integrate the latest achievements in fiber technology into easy-to-use products. Menlo Systems’ unique figure 9® mode locking technology results in reproducible and long-term stable operation. The ELMO with its all-fiber design guarantees excellent stability and low-noise operation. As seed source for fiber amplifiers the oscillator is maintenance free, user installed and ready to use at the press of a single button. In short: An OEM laser engineered for 24/7 operation.

Options

  • VARIO User-Defined Repetition Rate

    Product Code: VARIO

    Factory-set value selectable in the 50-100 MHz range

  • MULTIBRANCH Additional Seed Ports

    Product Code: MULTIBRANCH

    Seeding of multiple amplifiers with optional subsequent frequency conversion to cover multiple wavelengths

Amplitude noise

< 0.5% rms (over 24h)

ELMO Amplitude_noise_04_2017.jpg


 Reproducibility

Identical and consistent laser performance

Reproducibility fs Fiber Lasers



Spektren und Autokorrelationen 1560nm
